    Product
    Product:Zep Solar Mounting Frame
    No.:40*35*5.1mm

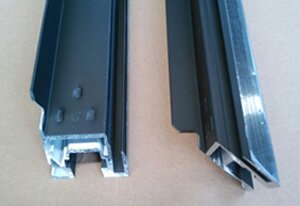

    Product multi-angle display:
    Easy Installed ZEP Solar Panel Aluminium Frame Black Anodized with Four Corner Key Block​


    Frame Detail:

    Brand Name: KAILUN
    Certification: TUV ,CE ,JET
    Place of Origin: China
    MOQ: 1 ton
    Payment Terms: T/T ,L/C
    Supply Ability: 3000tons each month
    Delivery Time: 25days
    Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
    Material: Aluminum Alloy
    Temper: T5
    Color: Black
    Application: Roof
    Size: 40*35
    Surface: Anodized


    Applications:

    Solar Panel Frame

    1. for solar mounting system

    2. for solar rooftop mounting system

    3. for 100 watt solar panel

    4. for 200 watt solar panel

    5. for 250 watt solar panel

    6. for 300 watt solar panel

    7. for black picture frame

    8. for large picture frames











    Chemical Composition of aluminium alloy:

    Alloy

    Chemical Composition

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others

    Al(Min)

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.4-0.6

    0.1

    0.1

    0.1

    0.15

    rest

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    rest

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    rest








    Mechanical Properties

    Alloy

    Temper

    Thickness

    T.S.

    Y.S

    ELOG.

    Hardness

    σb (MPa)

    σ0.2 (MPa)

    δ%

    HV

    HW

    6005

    T5

    ≥ 0.8

    ≥260

    ≥240

    ≥10

    ≥85

    ≥15


    6063


    T4

    ≥ 0.8

    ≥130

    ≥65

    ≥12

    -

    -

    T5

    ≥ 0.8

    ≥160

    ≥110

    ≥8

    ≥58

    ≥8

    T6

    ≥ 0.8

    ≥205

    ≥180

    ≥8

    ≥65

    ≥10

    6061

    T4

    ≥ 0.8

    ≥180

    ≥110

    ≥16

    ≥65

    ≥10

    T6

    ≥ 0.8

    ≥265

    ≥245

    ≥8

    ≥85

    ≥15.5


    Frame Drawing:
    Black Anodized Alum ZEP Solar Panel Frame Material with Four Corner Key Block Easy Installed
     Black Anodized Alum ZEP Solar Panel Frame Material with Four Corner Key Block Easy Installed
