    Product

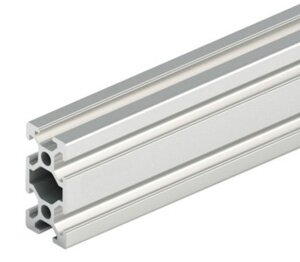

    Product:T Slot Aluminum Extrusion
    No.:Aluminum Extrusion Beams
    Product multi-angle display:
    T Slot Aluminum Extrusion Beams for Transport , Building , Conveyor Roller , Sliding Windows and Curtain Wall Profile





    Quick Detail:



    1. Name: t slot aluminum extrusion

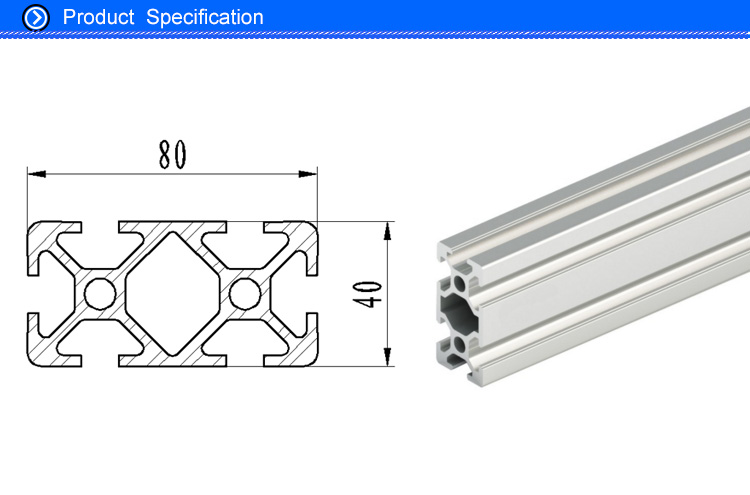

    2. Size:80*40 MM

    3. Weight:0.789kg/m

    4. Material: 6005, 6063, 6061, etc.

    5. Surface Treatment: silver anodizing
    6. Coating Thickness: 10 - 15 um
    7. Length: as customer's requirement
    8. Standard: EN 755,CB/T 6892,SGS

    9. Certification: ISO/TS16949 : 2009

    10. Deep Process: cutting,drilling,punching,etc





    Applications:



    T Slot Aluminum Extrusion Beams

    1. for Transport Machine

    2. for Conveyor Roller

    3. for Sliding Window

    4. for Curtain Wall Profile

    5. for 3D printer

    6. for Framing Table

    7. for T Slot Framing system





















    What we can do:



    Business type:

    Manufacturer with permit of import and export

    Standard:

    GB 5237-2008 / En 755.2

    Product series:

    Aluminium profile for car parts

    Surface treatment:

    Anodizing, Powder coating, electrophoresis, wooden finish

    Packing:

    Kraft paper, EPE foam, Shrink film, Composite paper

    Payment term:

    T/T, L/C at sight









    Specification:







    A. Alloy code 6063, 6060, 6061, 6005, 6082

    B. State: T4 / T5 / T6

    C. Length: 1m-7m

    D. Normal Anodizing thickness: 8-15 micro

    E. Normal powder coating thickness: 60-100 micro

    F. Tensile strength: ≥ 160 mpa

    G. Yield strength: ≥ 110 mpa

    H. Extensibility: ≥ 8%

    I.   Hardness(HW): ≥ 8

    Normal order process:

    1. Confirm the drawings, colors and price;
    2. Make the payment of 30% deposit
    2. Start to make mould;
    4. We send samples  for your confirmation;
    5. Mass production and delivery;





    T Slot Aluminum Extrusion Beams for Transport , Building , Conveyor Roller , Sliding Windows and Curtain Wall Profile

    Introduction:



    Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.



    We are Gold Supplier for TOP 500 Enterprise.Some as below.

    - TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

    - OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)

    - Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)

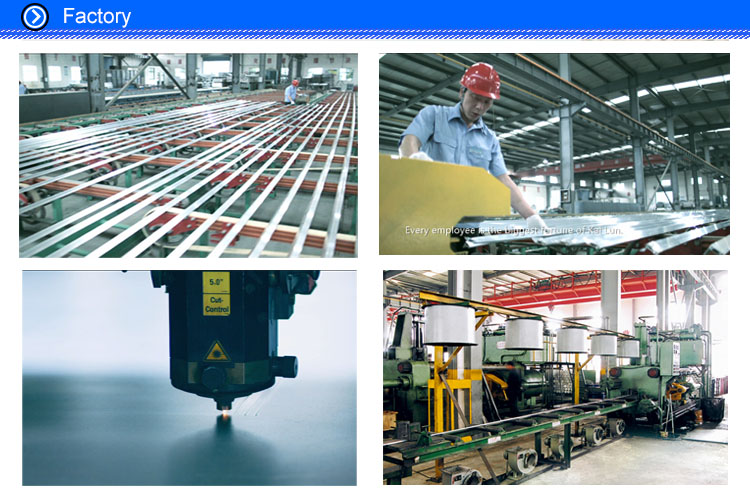

    Factory Tour:



    Waiting for your visit to check every detail.







    Characteristic Services:



    1. OEM service and ODM service on 30 years experience

    2. Advanced R&D team based on cooperation with university

    3. One-stop service from extrusion to deep processing

    4. Customized cutting length and deep processing

    5. Quick reply and delivery service

    6. Freely discussion about the industry news

    7. We do everything in-house

    8. Reliable quality (ISO /TS 16949:2009 - certified)
