Product:Medical equipment profile

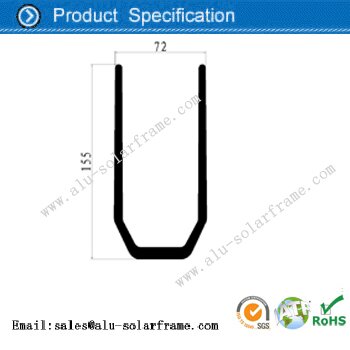

No.:155*72mm

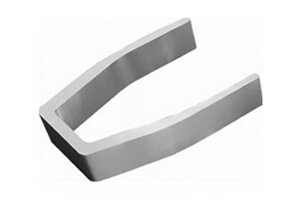

Product multi-angle display:
Medical equipment profile




Medical equipment profile

Raw material:    6063 T5 aluminum alloy
Section Size:     155*72mm
MOQ:               Negotiable
Payment terms: TT or L/C
FOB Price:        Negotiable

Servive:            OEM/ODM work are welcome
Introduction:    Used for the Fork parts








1. for auto parts use

2. for aluminium louvers and sun blade

3. for building curtain glass walls

4. for solar panel frame , solar mounting system

5. for Industry assembly lines equipment

6. for aluminium decking boards

7. for elevator sill and elevator guide rail

8. for heatsink and LED lighting strip





Product Features:



1. High hardness, hard aluminum series

2. Fair corrosion resistance. Heat treatable

3. Good machinability and better appearance

4. High quality with reasonable price

5. Better thermal and electrical conductivity

6. More than 10 years lifetime



Specifications:



Alloy Code

6005, 6063, 6061, etc

Temper

T3 - T8

Thickness

Aluprofile thickness: 1.0 - 10.0 mm;
Anodic oxidation thickness: 8 - 18 um;
Powder coating thickness: 40 - 80 um;

Length

Customized request available

Color

White, black, bronze, gray, green, etc.

Shape

Square, flat, round, hollow, oval, triangle, U-profiles,

L-profiles, T-profiles, H-profiles, customized available.

Surface Treatment

Mill finish, anodized, powder coating, electrophoresis,

wood grain,PVDF painting, polish, brushed

Machining

CNC, drilling, milling, cutting, punching, bending, etc.

Production Capacity

3000 tons monthly

Guarantee

Surface color can be stable for 15~20 years indoor using





FAQ to save your precious time:



Q1: What’s the thickness for anodizing? Can you do 15um?

A: Our normal thickness is about 10 um. Yes, we can do 15um and above.



Q2: What color you can do for powder coating? What about the thickness?

A: We can do any color for powder coat as long as you can provide the color

sample. Our normally powder coating thickness is 60-80um.



Q3: What color you can do for wood grain?

A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush

 Cherry, Bush Wood, Western Wood, Snow Gum, etc.

If you need any other colors, we can do according to the color samples you provide.



Q4: What’s your MOQ?

A: Normally speaking, it’s 1 ton.



Q5: What certification do you have? What’s your standard?

A: We have ISO / TS 16949:2009, SGS & ROHS certification.

Our standard is DIN, AAMA, AS/NZS, China GB.



Q6: What’s the delivery time for samples and mass production?

A: (1). 2-3 weeks to open the new moulds and make free samples.

    (2). 3-4 weeks after receipt of deposit and confirmation of the order.


Sam Solar Frame Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.



We are Gold Supplier for TOP 500 Enterprise.Some as below.

TRINA SOLAR / RENESOLA SOLARTRON PUBLIC / SHARP (Solar Industry)

- OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)



- Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)


Chemical Composition:



Alloy

Chemical Composition

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al(Min)

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

rest

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

rest





















Mechanical Properties



Alloy

Temper

Thickness

T.S.

Y.S

ELOG.

Hardness

σb (MPa)

σ0.2 (MPa)

δ%

HV

HW

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15



6063



T4

≥ 0.8

≥130

≥65

≥12

-

-

T5

≥ 0.8

≥160

≥110

≥8

≥58

≥8

T6

≥ 0.8

≥205

≥180

≥8

≥65

≥10

6061

T4

≥ 0.8

≥180

≥110

≥16

≥65

≥10

T6

≥ 0.8

≥265

≥245

≥8

≥85

≥15.5





Production Machinery:



Machine Name

Brand & Model No.

QTY

Years Used

Condition

Extruding Machine

Taiwan Yichang

14

25

Acceptable

Extruding Machine

Taiyuan Zhonggong

1

20

Acceptable

Anodizing Line

Taiwan Worldclean

2

20

Acceptable

Electrophoresis Line

Taiwan Worldclean

2

15

Acceptable

Powder Coating Line

Taiwan Worldclean

1

15

Acceptable

PVDF Coating Line

Taiwan Worldclean

1

15

Acceptable

Wood Grain Line

Taiwan Worldclean

1

5

Acceptable

Deep Processing Line

Solar Panel Frame

18

15

Acceptable

Packaging Line

No Information

2

15

Acceptable





























Processing Machinery:



Machine Name

Brand & Model No.

QTY

Years Used

Condition

CNC Machining Center

No Information

1

5

Acceptable

Bench Drilling Machine

Zhejiang Xiling

8

10

Acceptable

Punching Machine

Wuxi Lanling

13

10

Acceptable

Special Punching Machine

Wuxi Lanling

4

10

Acceptable

Ends Milling Machine

Wuxi Lanling

3

10

Acceptable

Digital Display Double Head Cutting Machine

Wegoma

13

10

Acceptable

Open Back Inclinable Press

Yangli Group

34

10

Acceptable

Plate Bender

Yangli Group

15

8

Acceptable





























Advantage:



1. Rich Industry Experiences:

We have over 30 years experience in aluminum extrusion production, and over 10 years in solar panel frame,150 kinds of frame have been developed for a variety of use.



2. Good Capacity:

Equipped with 15 automatic extrusion lines,our production capacity above 3000T per month



3. Quality Management and Control System:

Having passed the ISO/TS 1694 and SGS certifications, our quality management and control team ensures that every product is manufactured to the highest specifications.



4. One-stop Service:

From the inspection of the raw material, extrusion, aging oven treatment, sandblasting, anodizing, film coating, further processing center, packaging; Sam Solar Frame can take care of all of your aluminum extrusion product needs.



5. OEM Service:



6. Excellent ODM Service especially the professional design service:
