80mm Aluminium Elevator Door Sill for Building , Lift Door Sill for Elevator Door System



Item Detail:

1. Name: elevator door sill

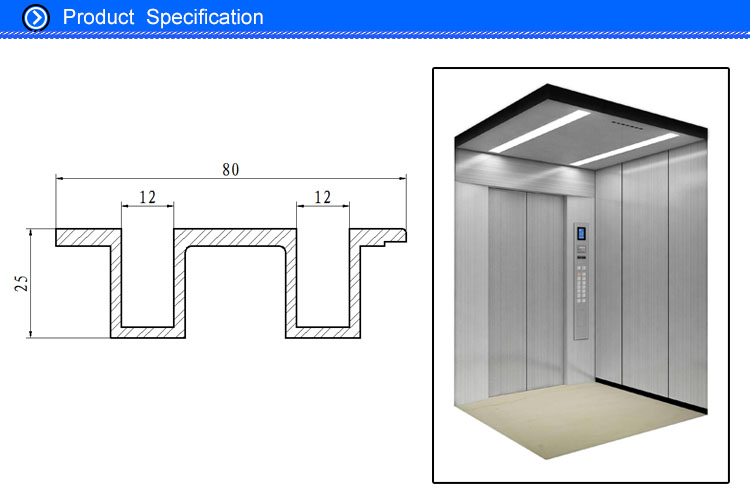

2. Size: 80*25mm
3. Weight: 1.327kg/m
4. Material: 6005, 6063, 6061, etc.
5. Surface Treatment: silver anodizing
6. Coating Thickness: 10 - 15 um
7. Length: as customer's requirement
8. Standard: EN 755,CB/T 6892,SGS
9. Certification: ISO/TS16949 : 2009
10. Deep Process: Available


Applications:


Aluminum Elevator Door Sill	1. for elevator door parts
	2. for elevator door sill
	3. for elevator sill angle
	4. for lift door sill
	5. for elevator threshold
	6. for escalator handrail
	7. for elevator landing door / cabin door
	8. for OTIS elevator parts
	9. for elevator door sill system














Chemical Composition:


Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity		Al
									Unit	Total
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	<0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.05	<0.15	Surplus
6005	0.6-0.9	<0.35	<0.1	<0.1	0.4-0.9	0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	<0.1	<0.1	<0.15	<0.05	<0.1	<0.05	<0.15	Surplus

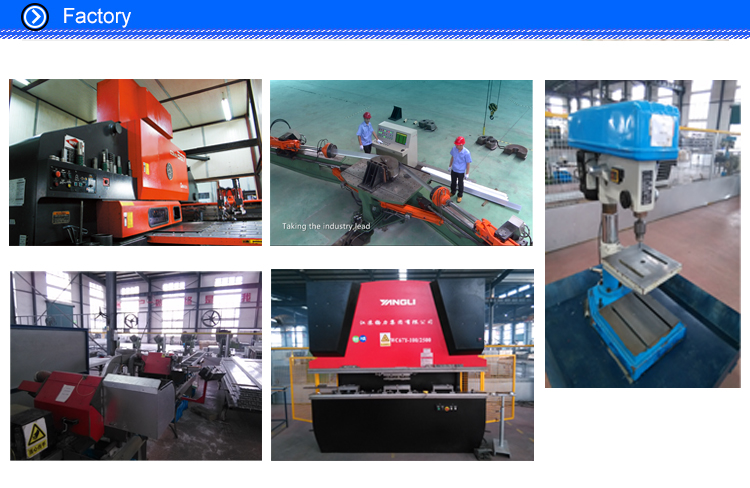

Deep Processing Machinery:


Machine Name	Brand & Model No.	QTY	Years Used	Condition
CNC Machining Center	No Information	1	5	Acceptable
Bench Drilling Machine	Zhejiang Xiling	8	10	Acceptable
Punching Machine	Wuxi Lanling	13	10	Acceptable
Special Punching Machine	Wuxi Lanling	4	10	Acceptable
Ends Milling Machine	Wuxi Lanling	3	10	Acceptable
Digital Display Double Head Cutting Machine	Wegoma	13	10	Acceptable
Open Back Inclinable Press	Yangli Group	34	10	Acceptable
Plate Bender	Yangli Group	15	8	Acceptable

















Introduction:

Sam Solar Frame Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.

We are Gold Supplier for TOP 500 Enterprise.Some as below.
- TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)
- OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)
- Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)


Factory Tour:

Waiting for your visit to check every detail.
