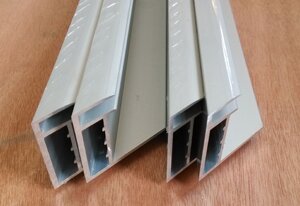

Frame type suitable for:
. 4.0 mm glass
. 5400N/mm2 pressure load (snow)
. 2400N/MM2 suction load (wind)
. " EckPack" stacking
. manual and automatic frame mounting
Usage:
Solar Panel Frame |
1. for solar mounting system |
2. for solar thermal energy |
|
3. for 100 watt solar panel |
|
4. for 200 watt solar panel |
|
5. for 250 watt solar panel |
|
6. for 300 watt solar panel |
|
7. for black picture frame |
|
8. for large picture frames |
Chemical Composition:
Alloy |
Chemical Composition |
|||||||||
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
Al(Min) |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.4-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
rest |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
rest |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
rest |
Mechanical Properties
Alloy |
Temper |
Thickness |
T.S. |
Y.S |
ELOG. |
Hardness |
|
σb (MPa) |
σ0.2 (MPa) |
δ% |
HV |
HW |
|||
6005 |
T5 |
≥ 0.8 |
≥260 |
≥240 |
≥10 |
≥85 |
≥15 |
|
T4 |
≥ 0.8 |
≥130 |
≥65 |
≥12 |
- |
- |
T5 |
≥ 0.8 |
≥160 |
≥110 |
≥8 |
≥58 |
≥8 |
|
T6 |
≥ 0.8 |
≥205 |
≥180 |
≥8 |
≥65 |
≥10 |
|
6061 |
T4 |
≥ 0.8 |
≥180 |
≥110 |
≥16 |
≥65 |
≥10 |
T6 |
≥ 0.8 |
≥265 |
≥245 |
≥8 |
≥85 |
≥15.5 |
Frame Drawing:
