    Product
    Product:Aluminum Solar Panel Frame with Corner Key
    No.:1650*992*35*35mm

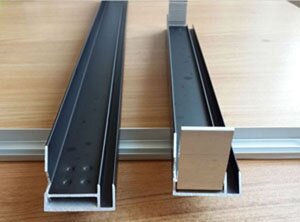

    Product multi-angle display:
     250 Watt Aluminum Solar Panel Frame with Corner Key Connection , Black Anodized 6063 Aluminium Framing





    Quick Detail:



    1. Name: solar panel frame

    2. Size: 1650*992*35*35mm

    3. Weight: 2.69kg/set

    4. Material: 6005, 6063, 6061, etc.

    5. Surface Treatment: silver anodizing
    6. Coating Thickness: 10 - 15 um
    7. Length: as customer's requirement
    8. Standard: EN 755,CB/T 6892,SGS

    9. Certification: ISO/TS16949 : 2009

    10. Deep Process: Available





    Applications:



    Solar Panel Frame

    1. for solar mounting system

    2. for solar thermal energy

    3. for 100 watt solar panel

    4. for 200 watt solar panel

    5. for 250 watt solar panel

    6. for 300 watt solar panel

    7. for black picture frame

    8. for large picture frames



    Frame Sizes

    1956 * 992 * 50 mm

    1956 * 992 * 40 mm

    1650 * 992 * 40 mm

    1625 * 1015 * 40 mm

    1640 * 992 * 40 mm

    1650 * 992 * 35 mm

    1638 * 982 * 35 mm

    1580 * 808 * 35 mm

    1500 * 670 * 30 mm

    992 * 809 * 40 mm

    537 *350 * 40 mm

















































    Description:



    Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.



    We are Gold Supplier for TOP 500 Enterprise.Some as below.

    TRINA SOLAR / RENESOLA SOLARTRON PUBLIC / SHARP (Solar Industry)

    - OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)

    - Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)

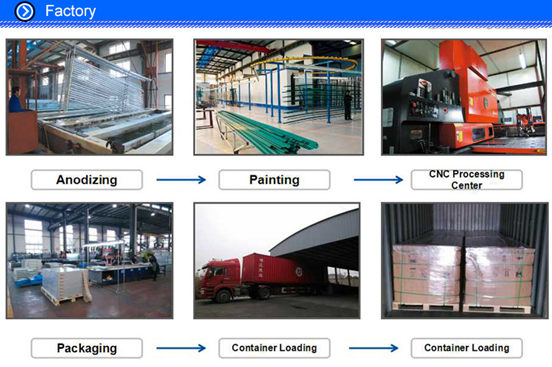

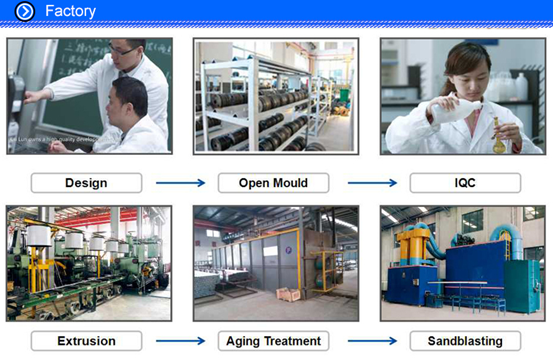

    Factory Tour:



    Waiting for your visit to check every detail.

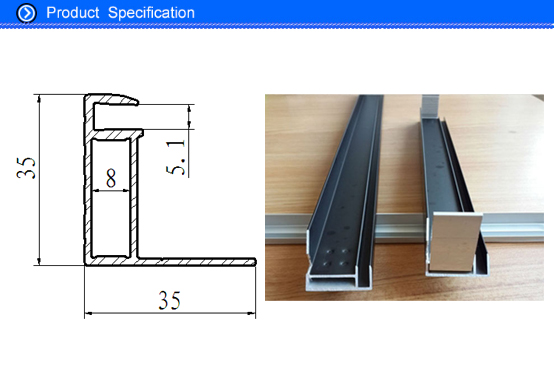

    Product Drawing:



    aluminum solar panel frame

    Chemical Composition:



    Alloy

    Chemical Composition

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others

    Al(Min)

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.4-0.6

    0.1

    0.1

    0.1

    0.15

    rest

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    rest

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    rest





















    Mechanical Properties



    Alloy

    Temper

    Thickness

    T.S.

    Y.S

    ELOG.

    Hardness

    σb (MPa)

    σ0.2 (MPa)

    δ%

    HV

    HW

    6005

    T5

    ≥ 0.8

    ≥260

    ≥240

    ≥10

    ≥85

    ≥15



    6063



    T4

    ≥ 0.8

    ≥130

    ≥65

    ≥12

    -

    -

    T5

    ≥ 0.8

    ≥160

    ≥110

    ≥8

    ≥58

    ≥8

    T6

    ≥ 0.8

    ≥205

    ≥180

    ≥8

    ≥65

    ≥10

    6061

    T4

    ≥ 0.8

    ≥180

    ≥110

    ≥16

    ≥65

    ≥10

    T6

    ≥ 0.8

    ≥265

    ≥245

    ≥8

    ≥85

    ≥15.5





    Production Machinery:



    Machine Name

    Brand & Model No.

    QTY

    Years Used

    Condition

    Extruding Machine

    Taiwan Yichang

    14

    25

    Acceptable

    Extruding Machine

    Taiyuan Zhonggong

    1

    20

    Acceptable

    Anodizing Line

    Taiwan Worldclean

    2

    20

    Acceptable

    Electrophoresis Line

    Taiwan Worldclean

    2

    15

    Acceptable

    Powder Coating Line

    Taiwan Worldclean

    1

    15

    Acceptable

    PVDF Coating Line

    Taiwan Worldclean

    1

    15

    Acceptable

    Wood Grain Line

    Taiwan Worldclean

    1

    5

    Acceptable

    Deep Processing Line

    Solar Panel Frame

    18

    15

    Acceptable

    Packaging Line

    No Information

    2

    15

    Acceptable





























    Deep Processing Machinery:



    Machine Name

    Brand & Model No.

    QTY

    Years Used

    Condition

    CNC Machining Center

    No Information

    1

    5

    Acceptable

    Bench Drilling Machine

    Zhejiang Xiling

    8

    10

    Acceptable

    Punching Machine

    Wuxi Lanling

    13

    10

    Acceptable

    Special Punching Machine

    Wuxi Lanling

    4

    10

    Acceptable

    Ends Milling Machine

    Wuxi Lanling

    3

    10

    Acceptable

    Digital Display Double Head Cutting Machine

    Wegoma

    13

    10

    Acceptable

    Open Back Inclinable Press

    Yangli Group

    34

    10

    Acceptable

    Plate Bender

    Yangli Group

    15

    8

    Acceptable





























    Competitive Advantage:



    1. Rich Industry Experiences:

    We have over 30 years experience in aluminum extrusion production, and over 10 years in solar panel frame,150 kinds of frame have been developed for a variety of use.



    2. Good Capacity:

    Equipped with 15 automatic extrusion lines,our production capacity above 3000T per month



    3. Quality Management and Control System:

    Having passed the ISO/TS 1694 and SGS certifications, our quality management and control team ensures that every product is manufactured to the highest specifications.



    4. One-stop Service:

    From the inspection of the raw material, extrusion, aging oven treatment, sandblasting, anodizing, film coating, further processing center, packaging; Karen Aluminum can take care of all of your aluminum extrusion product needs.



    5. OEM Service:



    6. Excellent ODM Service especially the professional design service:
