Aluminium Frame
Inquiry:
Product
Product:Aluminum Fence Slats
No.:Residential Aluminum Fencing
Product multi-angle display:

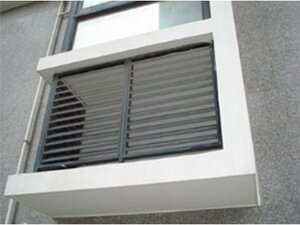

 Natural Anodized Extrusion Aluminum Fence Slats for Window , Residential Aluminum

Fencing





Item Detail:



1. Name: aluminum fence slats

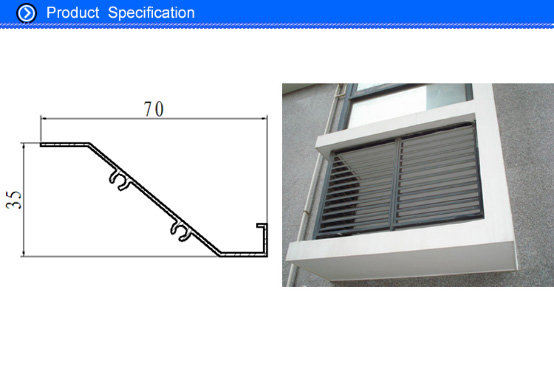

2. Dimension:70*35 MM

3. Weight:0.314kg/m

4. Material: 6005, 6063, 6061, etc.

5. Surface Treatment: silver anodizing...
6. Coating Thickness: 10 - 15 um
7. Length: as customer's requirement
8. Standard: EN 755,CB/T 6892,SGS

9. Certification: ISO/TS16949 : 2009

10. Deep Process: cutting,drilling,punching,etc





What sam can do:



Business type:

Manufacturer with permit of import and export

Brand:

SAM

Standard:

GB 5237-2008 / En 755.2

Product series:

Aluminium flat bar for building decoration

Surface treatment:

Anodizing, Powder coating, electrophoresis, wooden finish

Packing:

Kraft paper, EPE foam, Shrink film, Composite paper

Payment term:

T/T, L/C at sight

Specification:

A. Alloy code 6063, 6060, 6061, 6005,etc

B. State: T4 / T5 / T6

C. Length: 1m-6m

D. Normal Anodizing thickness: 8-15 micro

E. Normal powder coating thickness: 60-100 micro

F. Tensile strength: ≥ 160 mpa

G. Yield strength: ≥ 110 mpa

H. Extensibility: ≥ 8%

I.   Hardness(HW): ≥ 8

Normal order process:

1. Confirm the drawings, colors and price;
2. Make the payment of 30% deposit
2. Start to make mould;
4. We send samples  for your confirmation;
5. Mass production and delivery;





Deep Processing Machinery:



Machine Name

Brand & Model No.

QTY

Years Used

Condition

CNC Machining Center

No Information

1

5

Acceptable

Bench Drilling Machine

Zhejiang Xiling

8

10

Acceptable

Punching Machine

Wuxi Lanling

13

10

Acceptable

Special Punching Machine

Wuxi Lanling

4

10

Acceptable

Ends Milling Machine

Wuxi Lanling

3

10

Acceptable

Digital Display Double Head Cutting Machine

Wegoma

13

10

Acceptable

Open Back Inclinable Press

Yangli Group

34

10

Acceptable

Plate Bender

Yangli Group

15

8

Acceptable





























Company Profile:



Sam Solar Frame Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.



We are Gold Supplier for TOP 500 Enterprise.Some as below.

- TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

- OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)

- Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)
