    Product
    Product:Aluminium Tube
    No.:50mm Aluminium Tube

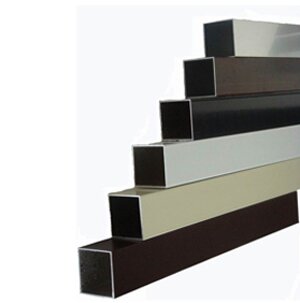

    Product multi-angle display:
    Extruded 50mm Aluminium Tube of Square Shape , Cutting Aluminium Tube





    Item Detail:

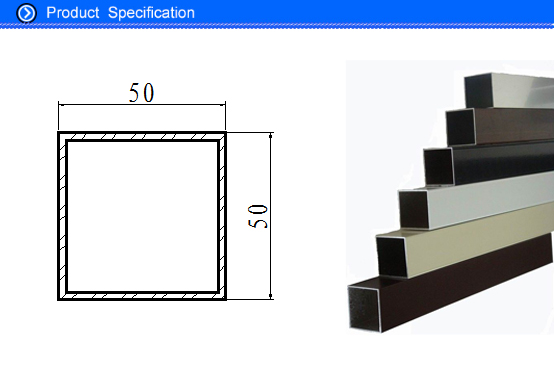

    1. Name: 50mm aluminium tube

    2. Size:50*50MM

    3. Thickness:2.3mm

    4. Weight:1.189kg/m

    5. Material: 6005, 6063, 6061, etc.
    6. Coating Thickness: 10 - 15 um
    7. Length: as customer's requirement
    8. Standard: EN 755,CB/T 6892,SGS

    9. Certification: ISO/TS16949 : 2009

    10. Deep Process: cutting,drilling,punching,etc





    Applications:



    Aluminium Tube

    1. for Micro-motors

    2. for Cylinder machines without wearing sleeve

    3. for Pneumatic cylinder

    4. for Heat transfer equipment

    5. for Construction industry

    6. for Curtain track

    7. for Structure support

    8. for Irrigation pipes

    9. for Furniture





    Chemical Composition of Aluminum tube:



    Alloy

    Chemical Composition

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others

    Al(Min)

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.4-0.6

    0.1

    0.1

    0.1

    0.15

    Remainder

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    Remainder

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    Remainder

    6060

    0.3-0.6

    0.1-0.3

    0.1

    0.1

    0.35-0.6

    0.05

    0.05

    -

    0.15

    Remainder





    Product Detail:



    Extruded 50mm Aluminium Tube of Square Shape , Cutting Aluminium Tube

    FAQ to save your precious time:



    Question 1:What is your MOQ?

    We accept one ton per type for an order. But the detail we could negotiate.



    Question 2:What is your normal terms of payment?

    We always trade with you by T/T.But we also accept the L/C as you require.



    Question 3:How many kinds of the surface treatment we can choose?
    You could choose different color of powder coated.Anodized of black.matte silver,nature,champagne,bronze color.Mill finished.wooden finished,etc.



    Question 4:Can you supply OEM services?

    We offer OEM services for 20 years.



    Question 5:How many days for opening the mould?

    Normally about 10 days.According to the difficulty of your drawing.

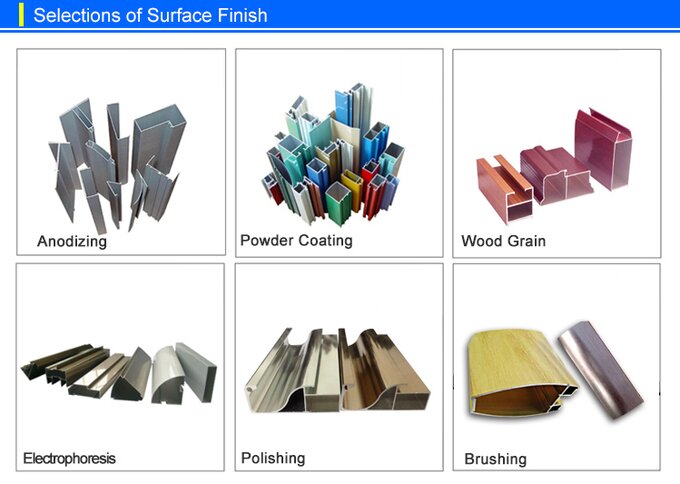

    Surface Treatment:



    aluminium extrusion profile surface treatment
