Product:Aluminium Frame Manufacturers
No.:50*35*5.5mm
Product multi-angle display:

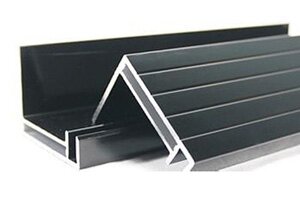

300Watt Black Anodized Solar Panel Frame Aluminum Extrusion Profile 50 X 35 MM for 4 MM Glass


Frame Info:

Brand Name: SAM
Certification: TUV ,CE ,JET
Place of Origin: China
MOQ: 2250 sets
Payment Terms: T/T ,L/C
Supply Ability: 3000tons each month
Delivery Time: 25days
Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
Material: Aluminum Alloy
Temper: T5
Color: Black
Application: Ground
Size: 50*35
Surface: Anodized


Usage:

Solar Panel Frame

1. for solar mounting system

2. for solar thermal energy

3. for 100 watt solar panel

4. for 200 watt solar panel

5. for 250 watt solar panel

6. for 300 watt solar panel

7. for black picture frame

8. for large picture frames











Chemical Composition:

Alloy

Chemical Composition

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al(Min)

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

rest

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

rest








Mechanical Properties

Alloy

Temper

Thickness

T.S.

Y.S

ELOG.

Hardness

σb (MPa)

σ0.2 (MPa)

δ%

HV

HW

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15


6063


T4

≥ 0.8

≥130

≥65

≥12

-

-

T5

≥ 0.8

≥160

≥110

≥8

≥58

≥8

T6

≥ 0.8

≥205

≥180

≥8

≥65

≥10

6061

T4

≥ 0.8

≥180

≥110

≥16

≥65

≥10

T6

≥ 0.8

≥265

≥245

≥8

≥85

≥15.5


Frame Drawing:
4 MM Glass 300 Watt Black Anodized Aluminum Panel Mounting Rails , Aluminum Extrusion Profile 50 X 35 Mm
