    Product
    Product:Aluminium Bus Bar
    No.:Aluminum Structural Framing Profile
    Product multi-angle display:
    Aircraft Grade Aluminum Structural Framing Profile , Silver Anodized Aluminium Bus Bar





    Item Detail:



    Name:

    aluminum structural framing

    Size:

    31.8 MM

    Weight:

    0.983KG/M

    Material:

    6005, 6063, 6061, etc.
    Surface Treatment:

    silver anodizing

    Coating Thickness:

    10 - 15 um

    Length:

    1 - 6 M

    Standard:

    EN 755,CB/T 6892,SGS

    Certification:

    ISO/TS16949 : 2009

    Deep Processing:

    cutting,drilling,punching,etc







    Product Features:



    1. High hardness, hard aluminum series

    2. Fair corrosion resistance. Heat treatable

    3. Good machinability and better appearance

    4. High quality with reasonable price

    5. Better thermal and electrical conductivity

    6. More than 10 years lifetime





    Specifications:



    Alloy Code

    6005, 6063, 6061, etc

    Temper

    T3 - T8

    Thickness

    Aluprofile thickness: 1.0 - 10.0 mm;
    Anodic oxidation thickness: 8 - 18 um;
    Powder coating thickness: 40 - 80 um;

    Length

    Customized request available

    Color

    White, black, bronze, gray, green, etc.

    Shape

    Square, flat, round, hollow, oval, triangle, U-profiles,

    L-profiles, T-profiles, H-profiles, customized available.

    Surface Treatment

    Mill finish, anodized, powder coating, electrophoresis,

    wood grain,PVDF painting, polish, brushed

    Machining

    CNC, drilling, milling, cutting, punching, bending, etc.

    Production Capacity

    3000 tons monthly

    Certificate&Standard

    1) ISO/TS 16949:2009

    2) SGSCertification;

    3) ROHS Certification;

    4) CE, BV, JIS, AS, NZS, QUALICOAT, QUOLANOD available

    Guarantee

    Surface color can be stable for 15~20 years indoor using





    Chemical Composition:



    Alloy

    Chemical Composition

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others

    Al(Min)

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.4-0.6

    0.1

    0.1

    0.1

    0.15

    Remainder

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    Remainder

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    Remainder

    6060

    0.3-0.6

    0.1-0.3

    0.1

    0.1

    0.35-0.6

    0.05

    0.05

    -

    0.15

    Remainder





    Mechanical Properties



    Alloy

    Temper

    Thickness

    T.S.

    Y.S

    ELOG.

    Hardness

    σb (MPa)

    σ0.2 (MPa)

    δ%

    HV

    HW

    6005

    T5

    ≥ 0.8

    ≥260

    ≥240

    ≥10

    ≥85

    ≥15



    6063



    T4

    ≥ 0.8

    ≥130

    ≥65

    ≥12

    -

    -

    T5

    ≥ 0.8

    ≥160

    ≥110

    ≥8

    ≥58

    ≥8

    T6

    ≥ 0.8

    ≥205

    ≥180

    ≥8

    ≥65

    ≥10

    6061

    T4

    ≥ 0.8

    ≥180

    ≥110

    ≥16

    ≥65

    ≥10

    T6

    ≥ 0.8

    ≥265

    ≥245

    ≥8

    ≥85

    ≥15.5

    6005

    T5

    ≥ 0.8

    ≥260

    ≥240

    ≥10

    ≥85

    ≥15

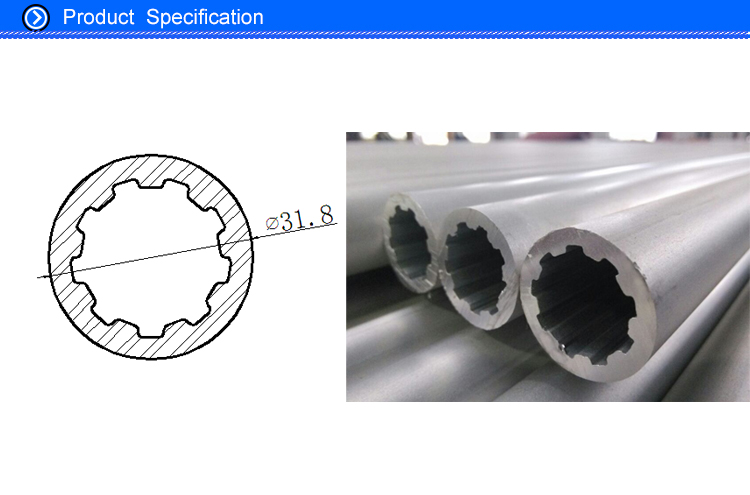

    Product Drawing:



    aluminum structural framing profile for bus bar





    Advantage - Why choose us?



    1). Over 30 years aluminum industrial experience and strong R&D team;

    2). 20 million RMB registered capital, with 500 employees;

    3). Complete production processing line, from mold design, extrusion, powder  coating, anodizing and

    wood grain, also with deep processing capacity.

    4). ISO/TS 16949:2009, SGS certification, ROHS certification

    5). Multi business scope, various types of products, ensures market shares

    6). High performance for TOP 500 Enterprises

    7). We do everything in-house.
