Aluminum Frame for Solar Power Plant
Type:               Tape frame
Raw material:    6063 T5 aluminum alloy

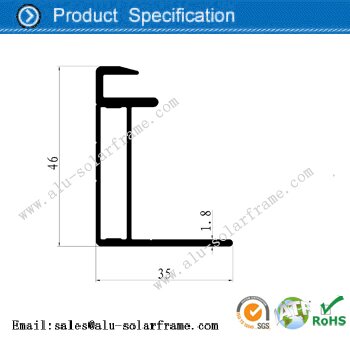

Section Size:     46*35*（slot）5.1mm
Suitable glass:    3.2mm thickness
MOQ:               20 FCL
Payment terms: TT or L/C
FOB Price:        Negotiable
Servive:            OEM/ODM work are welcome
Common specifications:1650*992mm

Sam Solar Frame Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.



We are Gold Supplier for TOP 500 Enterprise.Some as below.

- TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

- OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)



- Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)


Chemical Composition:



Alloy	Chemical Composition
	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others	Al(Min)
6005	0.6-0.9	0.35	0.1	0.1	0.4-0.6	0.1	0.1	0.1	0.15	rest
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	rest





















Mechanical Properties



Alloy	Temper	Thickness	T.S.	Y.S	ELOG.	Hardness
			σb (MPa)	σ0.2 (MPa)	δ%	HV	HW
6005	T5	≥ 0.8	≥260	≥240	≥10	≥85	≥15
6063	T4	≥ 0.8	≥130	≥65	≥12	-	-
	T5	≥ 0.8	≥160	≥110	≥8	≥58	≥8
	T6	≥ 0.8	≥205	≥180	≥8	≥65	≥10
6061	T4	≥ 0.8	≥180	≥110	≥16	≥65	≥10
	T6	≥ 0.8	≥265	≥245	≥8	≥85	≥15.5





Production Machinery:



Machine Name	Brand & Model No.	QTY	Years Used	Condition
Extruding Machine	Taiwan Yichang	14	25	Acceptable
Extruding Machine	Taiyuan Zhonggong	1	20	Acceptable
Anodizing Line	Taiwan Worldclean	2	20	Acceptable
Electrophoresis Line	Taiwan Worldclean	2	15	Acceptable
Powder Coating Line	Taiwan Worldclean	1	15	Acceptable
PVDF Coating Line	Taiwan Worldclean	1	15	Acceptable
Wood Grain Line	Taiwan Worldclean	1	5	Acceptable
Deep Processing Line	Solar Panel Frame	18	15	Acceptable
Packaging Line	No Information	2	15	Acceptable



























Processing Machinery:



Machine Name	Brand & Model No.	QTY	Years Used	Condition
CNC Machining Center	No Information	1	5	Acceptable
Bench Drilling Machine	Zhejiang Xiling	8	10	Acceptable
Punching Machine	Wuxi Lanling	13	10	Acceptable
Special Punching Machine	Wuxi Lanling	4	10	Acceptable
Ends Milling Machine	Wuxi Lanling	3	10	Acceptable
Digital Display Double Head Cutting Machine	Wegoma	13	10	Acceptable
Open Back Inclinable Press	Yangli Group	34	10	Acceptable
Plate Bender	Yangli Group	15	8	Acceptable



























Advantage:



1. Rich Industry Experiences:

We have over 30 years experience in aluminum extrusion production, and over 10 years in solar panel frame,150 kinds of frame have been developed for a variety of use.



2. Good Capacity:

Equipped with 15 automatic extrusion lines,our production capacity above 3000T per month



3. Quality Management and Control System:

Having passed the ISO/TS 1694 and SGS certifications, our quality management and control team ensures that every product is manufactured to the highest specifications.



4. One-stop Service:

From the inspection of the raw material, extrusion, aging oven treatment, sandblasting, anodizing, film coating, further processing center, packaging; Sam Solar Frame can take care of all of your aluminum extrusion product needs.



5. OEM Service:



6. Excellent ODM Service especially the professional design service:
