    Product
    Product:3D Printer Frame

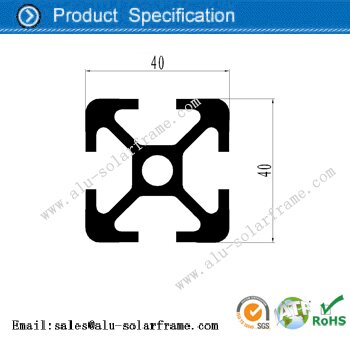

    No.:40*40mm
    Product multi-angle display:
    aluminum profile for 3D Printer Frame




    3D Printer Frame

    Raw material:    6063 aluminium
    Section Size:     40*40mm
    MOQ:               Negotiable
    Payment terms: TT or L/C
    FOB Price:        Negotiable

    Servive:            OEM/ODM work are welcome
    Introduction:    Used for the Assembly line system








    1. for auto parts use

    2. for aluminium louvers and sun blade

    3. for building curtain glass walls

    4. for solar panel frame , solar mounting system

    5. for Industry assembly lines equipment

    6. for aluminium decking boards

    7. for elevator sill and elevator guide rail

    8. for heatsink and LED lighting strip





    Product Features:



    1. High hardness, hard aluminum series

    2. Fair corrosion resistance. Heat treatable

    3. Good machinability and better appearance

    4. High quality with reasonable price

    5. Better thermal and electrical conductivity

    6. More than 10 years lifetime



    Specifications:



    Alloy Code

    6005, 6063, 6061, etc

    Temper

    T3 - T8

    Thickness

    Aluprofile thickness: 1.0 - 10.0 mm;
    Anodic oxidation thickness: 8 - 18 um;
    Powder coating thickness: 40 - 80 um;

    Length

    Customized request available

    Color

    White, black, bronze, gray, green, etc.

    Shape

    Square, flat, round, hollow, oval, triangle, U-profiles,

    L-profiles, T-profiles, H-profiles, customized available.

    Surface Treatment

    Mill finish, anodized, powder coating, electrophoresis,

    wood grain,PVDF painting, polish, brushed

    Machining

    CNC, drilling, milling, cutting, punching, bending, etc.

    Production Capacity

    3000 tons monthly

    Guarantee

    Surface color can be stable for 15~20 years indoor using





    FAQ to save your precious time:



    Q1: What’s the thickness for anodizing? Can you do 15um?

    A: Our normal thickness is about 10 um. Yes, we can do 15um and above.



    Q2: What color you can do for powder coating? What about the thickness?

    A: We can do any color for powder coat as long as you can provide the color

    sample. Our normally powder coating thickness is 60-80um.



    Q3: What color you can do for wood grain?

    A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush

     Cherry, Bush Wood, Western Wood, Snow Gum, etc.

    If you need any other colors, we can do according to the color samples you provide.



    Q4: What’s your MOQ?

    A: Normally speaking, it’s 1 ton.



    Q5: What certification do you have? What’s your standard?

    A: We have ISO / TS 16949:2009, SGS & ROHS certification.

    Our standard is DIN, AAMA, AS/NZS, China GB.



    Q6: What’s the delivery time for samples and mass production?

    A: (1). 2-3 weeks to open the new moulds and make free samples.

        (2). 3-4 weeks after receipt of deposit and confirmation of the order.


    Sam Solar Frame Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.



    We are Gold Supplier for TOP 500 Enterprise.Some as below.

    TRINA SOLAR / RENESOLA SOLARTRON PUBLIC / SHARP (Solar Industry)

    - OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)



    - Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)


    Chemical Composition:



    Alloy

    Chemical Composition

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others

    Al(Min)

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.4-0.6

    0.1

    0.1

    0.1

    0.15

    rest

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    rest

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    rest





















    Mechanical Properties



    Alloy

    Temper

    Thickness

    T.S.

    Y.S

    ELOG.

    Hardness

    σb (MPa)

    σ0.2 (MPa)

    δ%

    HV

    HW

    6005

    T5

    ≥ 0.8

    ≥260

    ≥240

    ≥10

    ≥85

    ≥15



    6063



    T4

    ≥ 0.8

    ≥130

    ≥65

    ≥12

    -

    -

    T5

    ≥ 0.8

    ≥160

    ≥110

    ≥8

    ≥58

    ≥8

    T6

    ≥ 0.8

    ≥205

    ≥180

    ≥8

    ≥65

    ≥10

    6061

    T4

    ≥ 0.8

    ≥180

    ≥110

    ≥16

    ≥65

    ≥10

    T6

    ≥ 0.8

    ≥265

    ≥245

    ≥8

    ≥85

    ≥15.5





    Production Machinery:



    Machine Name

    Brand & Model No.

    QTY

    Years Used

    Condition

    Extruding Machine

    Taiwan Yichang

    14

    25

    Acceptable

    Extruding Machine

    Taiyuan Zhonggong

    1

    20

    Acceptable

    Anodizing Line

    Taiwan Worldclean

    2

    20

    Acceptable

    Electrophoresis Line

    Taiwan Worldclean

    2

    15

    Acceptable

    Powder Coating Line

    Taiwan Worldclean

    1

    15

    Acceptable

    PVDF Coating Line

    Taiwan Worldclean

    1

    15

    Acceptable

    Wood Grain Line

    Taiwan Worldclean

    1

    5

    Acceptable

    Deep Processing Line

    Solar Panel Frame

    18

    15

    Acceptable

    Packaging Line

    No Information

    2

    15

    Acceptable





























    Processing Machinery:



    Machine Name

    Brand & Model No.

    QTY

    Years Used

    Condition

    CNC Machining Center

    No Information

    1

    5

    Acceptable

    Bench Drilling Machine

    Zhejiang Xiling

    8

    10

    Acceptable

    Punching Machine

    Wuxi Lanling

    13

    10

    Acceptable

    Special Punching Machine

    Wuxi Lanling

    4

    10

    Acceptable

    Ends Milling Machine

    Wuxi Lanling

    3

    10

    Acceptable

    Digital Display Double Head Cutting Machine

    Wegoma

    13

    10

    Acceptable

    Open Back Inclinable Press

    Yangli Group

    34

    10

    Acceptable

    Plate Bender

    Yangli Group

    15

    8

    Acceptable





























    Advantage:



    1. Rich Industry Experiences:

    We have over 30 years experience in aluminum extrusion production, and over 10 years in solar panel frame,150 kinds of frame have been developed for a variety of use.



    2. Good Capacity:

    Equipped with 15 automatic extrusion lines,our production capacity above 3000T per month



    3. Quality Management and Control System:

    Having passed the ISO/TS 1694 and SGS certifications, our quality management and control team ensures that every product is manufactured to the highest specifications.



    4. One-stop Service:

    From the inspection of the raw material, extrusion, aging oven treatment, sandblasting, anodizing, film coating, further processing center, packaging; Sam Solar Frame can take care of all of your aluminum extrusion product needs.



    5. OEM Service:



    6. Excellent ODM Service especially the professional design service:
