    Product

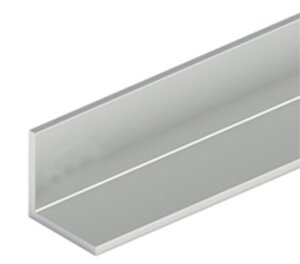

    Product:30*30*4mm Aluminium Equal Angle
    No.:Aluminium Angle
    Product multi-angle display:
    6000 Series Industrial Anodised Aluminium Angle , 30*30*4mm Aluminium Equal Angle





    Quick Detail:



    1. Name: aluminium angles

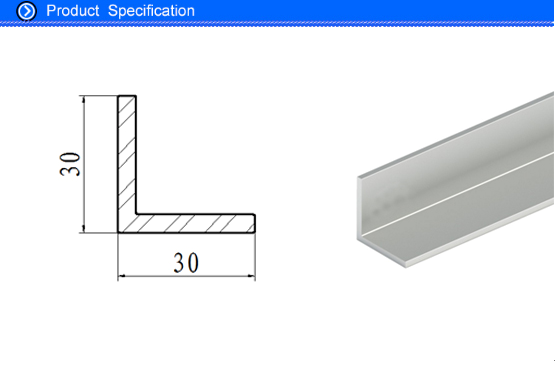

    2. :30*30MM

    3. Thickness:4mm

    4. Weight:0.607kg/m

    5. Material: 6005, 6063, 6061, etc.
    6. Coating Thickness: 10 - 15 um
    7. Length: as customer's requirement
    8. Standard: EN 755,CB/T 6892,SGS

    9. Certification: ISO/TS16949 : 2009

    10. Deep Process: cutting,drilling,punching,etc





    Applications:



    Anodised Aluminium Angle

    1. for Micro-motors

    2. for Cylinder machines without wearing sleeve

    3. for Pneumatic cylinder

    4. for Heat transfer equipment

    5. for Construction industry

    6. for Curtain track

    7. for Structure support

    8. for Irrigation pipes

    9. for Furniture



























    Specifications:



    Business type:

    Manufacturer with permit of import and export

    Standard:

    GB 5237-2008 / En 755.2

    Product series:

    Aluminium profile for angle parts

    Surface treatment:

    Anodizing, Powder coating, electrophoresis, wooden finish

    Packing:

    Kraft paper, EPE foam, Shrink film, Composite paper

    Payment term:

    T/T, L/C at sight

    Specification:

    A. Alloy code 6063, 6060, 6061, 6005, 6082

    B. State: T4 / T5 / T6

    C. Length: 1m-7m

    D. Normal Anodizing thickness: 8-15 micro

    E. Normal powder coating thickness: 60-100 micro

    F. Tensile strength: ≥ 160 mpa

    G. Yield strength: ≥ 110 mpa

    H. Extensibility: ≥ 8%

    I.   Hardness(HW): ≥ 8

    Normal order process:

    1. Confirm the drawings, colors and price;
    2. Make the payment of 30% deposit
    2. Start to make mould;
    4. We send samples  for your confirmation;
    5. Mass production and delivery;







    Introduction:



    Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.



    We are Gold Supplier for TOP 500 Enterprise.Some as below.

    - TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

    - OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)

    - Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)





    Factory Tour:



    Waiting for your visit to check every detail.







    FAQ to save your precious time:



    Question 1:What is your MOQ?

    We accept one ton per type for an order. But the detail we could negotiate.



    Question 2:What is your normal terms of payment?

    We always trade with you by T/T.But we also accept the L/C as you require.



    Question 3:How many kinds of the surface treatment we can choose?
    You could choose different color of powder coated.Anodized of black.matte silver,nature,champagne,bronze color.Mill finished.wooden finished,etc.



    Question 4:Can you supply OEM services?

    We offer OEM services for 20 years.



    Question 5:How many days for opening the mould?

    Normally about 10 days.According to the difficulty of your drawing.
